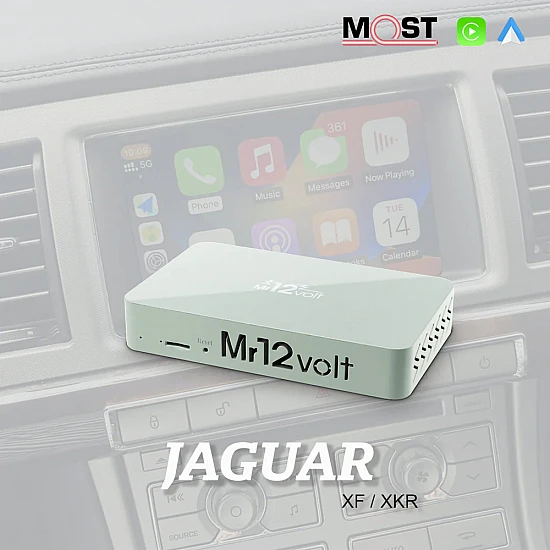

CarPlay & Android Auto / Mirrorlink Interface with DSP for Jaguar XF XFR XK XKR

This Apple CarPlay / Google Android Auto / Mirrorlink multimedia interface / adapter is suitable for Jaguar XF, XFR, XK and XKR infotainment systems.

Suitable Jaguar models:

• Jaguar XF / XFR 2008 - 2011 ( Pre-facelift )
• Jaguar XK / XKR 2007 - 2015

Features

• The most advanced Apple CarPlay, Google Android Auto (wired and wireless) interface on the market
• Miracast / Mirrorlink wireless (image from the smartphone is projected on the car screen)
• Integrated Bluetooth module for wireless music streaming (A2DP) in digital quality and control via control buttons. Support for title / artist name / album display on the display. Suitable for streaming sounds from played music, videos, navigation, podcasts etc. on your smartphone via the speakers. Suitable for playing Spotify, Deezer, Pandora, iTunes, YouTube...
• Hands-free calling (car kit) functionality and control via control buttons (AVRCP)
• USB connection for playing audio and video files
• Front-view camera, side camera and rear-view camera inputs with support for aftermarket cameras up to AHD720 (cameras are not included)
• Support for Apple Lossless music streaming
• Siri activation via steering wheel button "Voice command"
• The only one of its kind, where audio runs via fiber optic (MOST) and not via AUX as with competitors. Crystal clear sound is guaranteed
• DSP chip with 15 bar equalizer
• Support for OEM microphone from Jaguar itself. No need to install an external microphone anymore
• 2x integrated antennas (WiFi and Bluetooth)
• Everything remains original, control via infotainment system buttons
• 100% Plug and Play, no cutting of wires or soldering
• Color: gray

• Supported media types: Click here

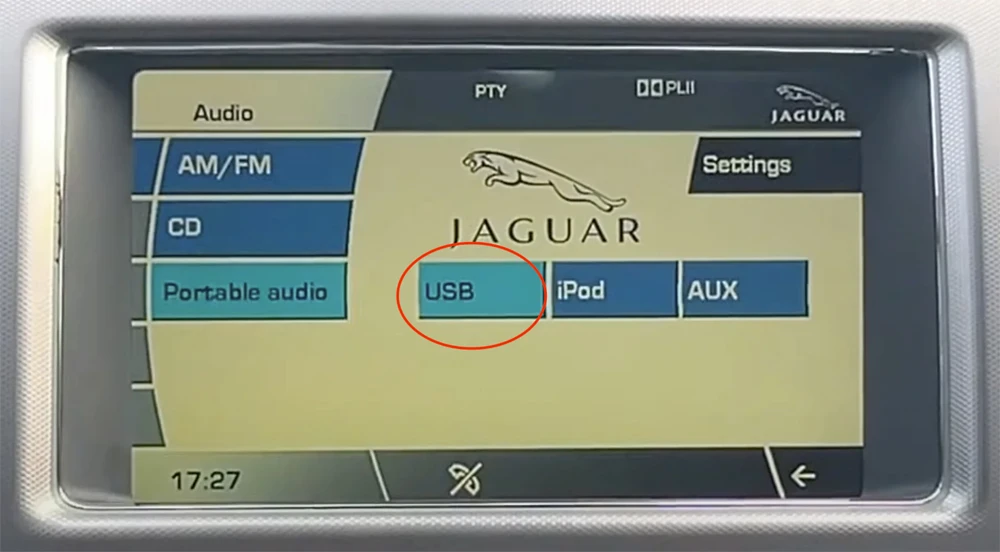

IMPORTANT: The P2000 replaces the OEM USB module. The Jaguar MUST have OEM USB module preinstalled!

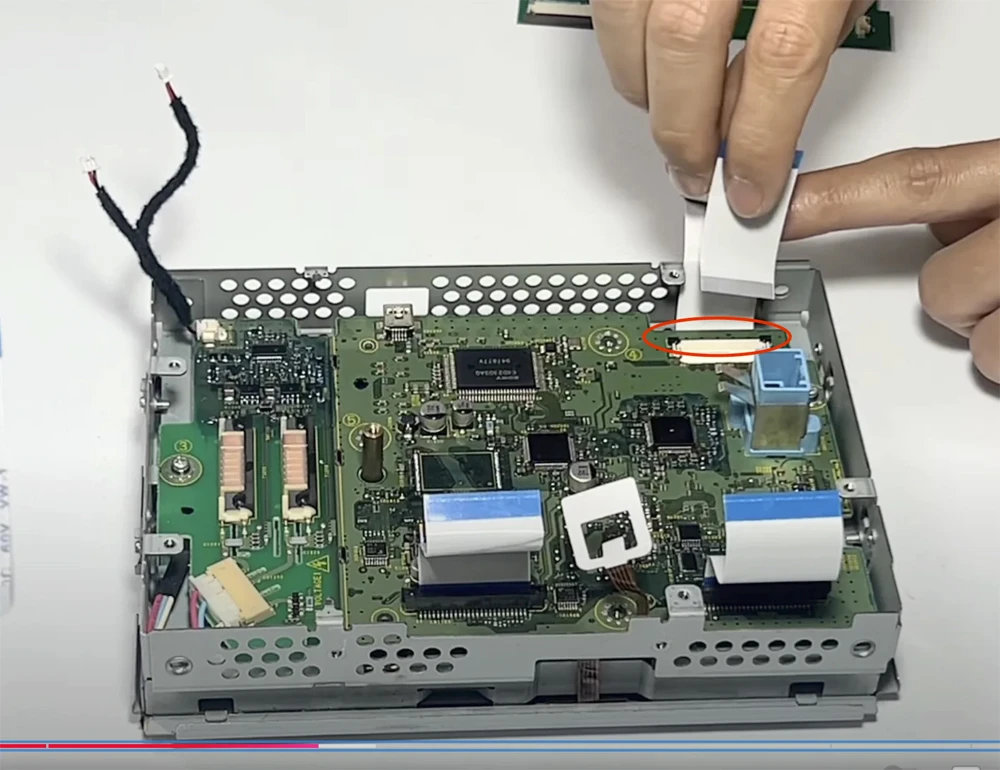

If your Jaguar is 2009 or earlier, we strongly suggest to open up the screen and check the video cable, make sure it is a 40pin cable before purchasing. Some older screens are using a 30pin cable which will not fit our product.

Video examples

General information

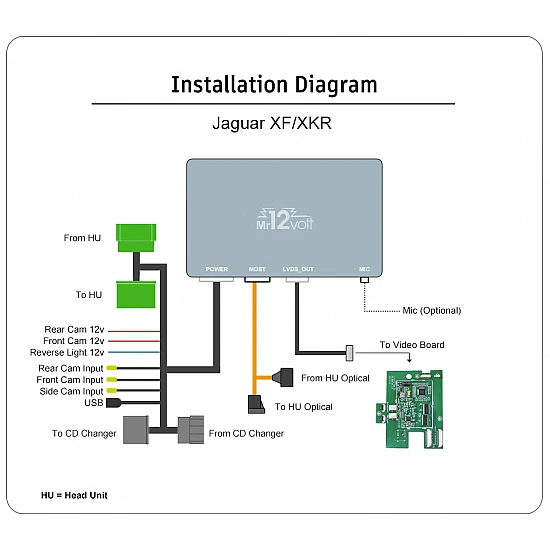

Installation Jaguar XF 2008-2011
Installation Jaguar XKR 2007+

Technical specifications

• Operating temperature: -20 to +80 degrees
• DAC resolution: 18Bit
• MP3 bitrate: 8 - 384 kbit
• Voltage: 10 - 14.6V DC
• Current consumption: 450mA (700mA when charging a smartphone)
• S/N ratio: 95dB
• Total Harmonic Distortion: 0.1%
• Frequency range: 20Hz - 20KHz
