Bluetooth streaming adapter for OPEL car radios with AUX, for CD30 MP3, CDC40, CD70, DVD90

With this Bluetooth streaming module you can enjoy your favorite music that can be played wirelessly from a mobile phone or another Bluetooth device via your original OPEL car radio with active AUX functionality.

Product features:

• Stream music wirelessly (A2DP), also via Spotify and Deezer. Operation takes place via the smartphone itself
• High quality Bluetooth chip. Sound transmission without distortion according to High Definition Standard
• Current stabilizer with integrated interference filter for clear sound
• LED Power Status Indicator
• Shock and interference resistant
• No loss of quality or interference (as with FM transmitters) thanks to the direct connection
• Made entirely of copper wire (winter-resistant)
• Easy installation, without damage to the original parts of the car
• Only suitable for streaming music and NOT for calling!

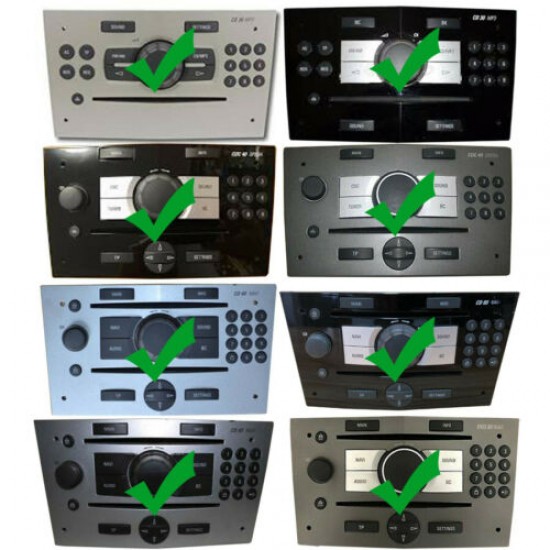

Supported Opel models / car radios:

• Opel Agila 2000-2007 with CD 70 navi
• Opel Agila 2000-2007 with CD30/CD30 mp3
• Opel Agila 2000-2007 with 40 cdc opera
• Opel Agila 2000-2007 with 90 navi DVD
• Opel Antara from 2006 with CD 70 navi
• Opel Antara from 2006 with CD30/CD30 mp3
• Opel Antara from 2006 with 40 cdc opera
• Opel Antara from 2006 with 90 navi DVD
• Opel Astra h (from 2004) with CD 70 navi
• Opel Astra h (from 2004) with CD30/CD30 mp3
• Opel Astra h (from 2004) with 40 cdc opera
• Opel Astra h (from 2004) with 90 navi DVD
• Opel Combo 2003-2010 with CD 70 navi
• Opel Combo 2003-2010 with CD30/CD30 mp3
• Opel Combo 2003-2010 with 40 cdc opera
• Opel Combo 2003-2010 with 90 navi DVD
• Opel Corsa 2003-2006 with CD 70 navi
• Opel Corsa 2003-2006 with CD30/CD30 mp3
• Opel Corsa 2003-2006 with 40 cdc opera
• Opel Corsa 2003-2006 with 90 navi DVD
• Opel Corsa from 2006 with 90 navi DVD
• Opel Corsa from 2006 with CD30/CD30 mp3
• Opel Meriva from 2005 with CD 70 navi
• Opel Meriva from 2005 with CD30/CD30 mp3
• Opel Meriva from 2005 with 40 cdc opera
• Opel Meriva from 2005 with 90 navi DVD
• Opel Movano from 08/2006 with CD 70 navi
• Opel Movano from 08/2006 with CD30/CD30 mp3
• Opel Movano from 08/2006 with 40 cdc opera
• Opel Movano from 08/2006 with 90 navi DVD
• Opel Signum from 2003 with CD 70 navi
• Opel Signum from 2003 with CD30/CD30 mp3
• Opel Signum from 2003 with 40 cdc opera
• Opel Signum from 2003 with 90 navi DVD
• Opel Tigra twintop (from 03/2005) with CD 70 navi
• Opel Tigra twintop (from 03/2005) with CD30/CD30 mp3
• Opel Tigra twintop (from 03/2005) with 40 cdc opera
• Opel Tigra twintop (from 03/2005) with 90 navi DVD
• Opel Vectra c (from 2005) with CD 70 navi
• Opel Vectra c (from 2005) with CD30/CD30 mp3
• Opel Vectra c (from 2005) with 40 cdc opera
• Opel Vectra c (from 2005) with 90 navi DVD
• Opel Vivaro from 08/2006 with CD 70 navi
• Opel Vivaro from 08/2006 with CD30/CD30 mp3
• Opel Vivaro from 08/2006 with 40 cdc opera
• Opel Vivaro from 08/2006 with 90 Navi DVD
• Opel Zafira 7/2005 with CD 70 navi
• Opel Zafira 7/2005 with CD30/CD30 mp3
• Opel Zafira 7/2005 with 40 cdc opera
• Opel Zafira from 7/2005 with 90 navi DVD

3x AUX pins must be active on the sticker of the car radio. Below you will find an example.



If the pin layout is identical to the image below then your car radio is not supported! (usually before year of construction 2007)




If you can switch your car radio to the AUX input, then this Bluetooth interface can be used.
If this is not the case, the AUX functionality will not be activated by using this interface.

To switch the radio to AUX mode, press the "FM/AM" button several times until AUX appears on the screen. See page 34 of the manual.

The necessary connection is located on the back of the radio. The following key set can be used to disassemble most of the radios mentioned:

Key06 for Opel

Installation:

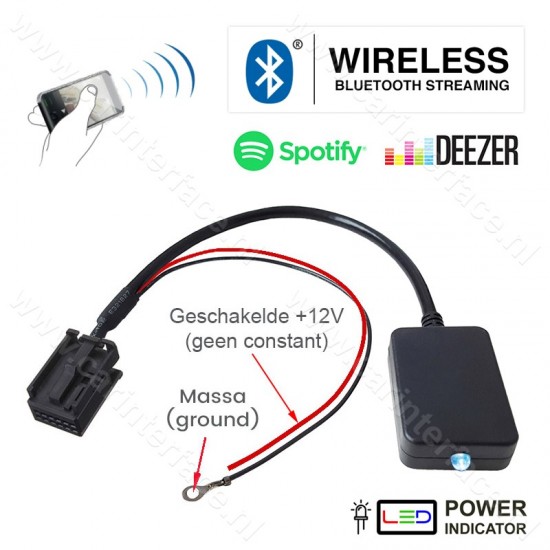

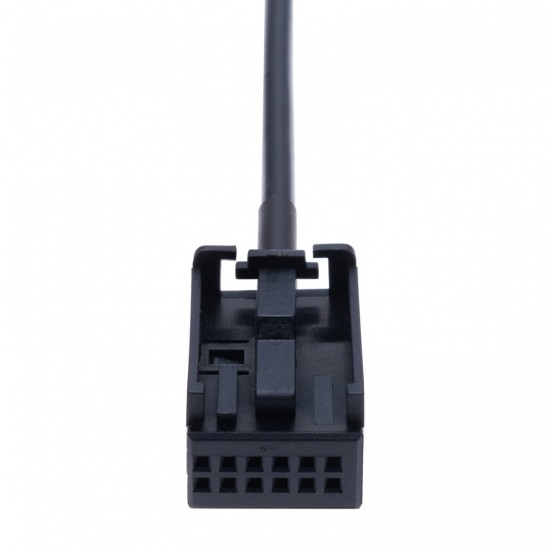

Black 12-pin connector is connected to the AUX port at the back of the car radio. The black wire must then be connected to ground (-12V) and the red wire to the switched (interrupted via ignition lock) +12V.
Possibly to tap the radio wiring.

Please check that the AUX port on your radio visually matches the connector on this Bluetooth interface before placing your order!
