Bluetooth to AUX interface / adapter for BMW E60 E61 E62 E63 E64 E66 E81 E82 E70 E90 from year 2004 with MASK / CCC

With this Bluetooth module (interface / audio adapter) you can enjoy your favorite music that can be played wirelessly from a mobile phone or another Bluetooth device via your original BMW E60/E61 from year 2004 with MASK or CCC infotainment systems with an active AUX functionality.

Product features:

• Stream music wirelessly (A2DP), also via Spotify and Deezer. Operation takes place via the smartphone itself
• High quality Bluetooth chip. Sound transmission without distortion according to High Definition Standard
• Current stabilizer with integrated interference filter for clear sound
• LED Power Status Indicator
• Shock and interference resistant
• No loss of quality or interference (as with FM transmitters) thanks to the direct connection
• Made entirely of copper wire (winter-resistant)
• Easy installation, without damage to the original parts of the car
• Only suitable for streaming music and NOT for calling!

If you can switch your car radio to the AUX mode, then this Bluetooth interface can be used.
If this is not the case, the AUX functionality will not be activated by using this adapter.
To do this, you can go to the dealer to have the AUX functionality activated (if supported by your audio system).

The necessary AUX connection is located at the back of the radio (room C).

Power supply connection (room A):

Installation:

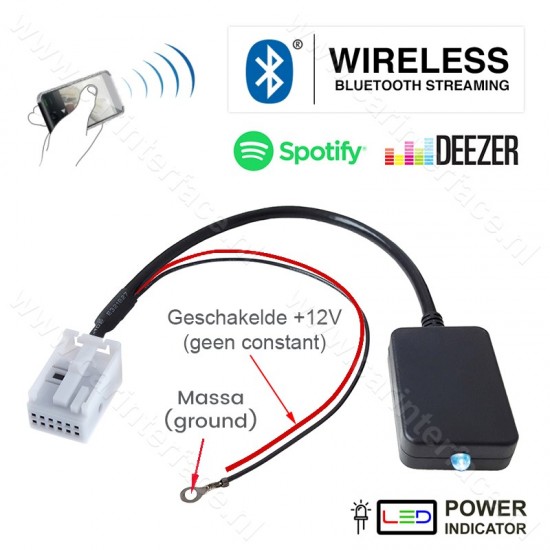

The installation is quite simple. The black 12-pin connector of the Bluetooth module (interface / audio adapter) is connected to the AUX port at the back of the car radio.
The black wire of the Bluetooth module must then be connected to ground (not AUX/Audio ground!) and the red wire to the switched +12V.

Please check whether the AUX port pinout on your car radio matches the connector on this Bluetooth module (interface / audio adapter) before placing an order!
