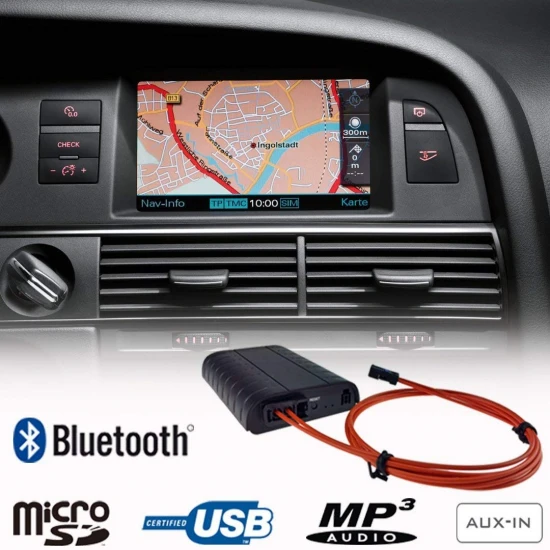

Bluetooth + USB + SD + AUX IN interface / adapter for Audi with MMI 2G High / Basic (MOST)

This MMI 2G interface / audio adapter ( 7th generation with latest firmware! ) makes it possible to play music in MP3, WMA and WAV format from a USB stick or a microSD card in CD quality via the MMI 2G infotainment system.

The interface also has a 3.5mm AUX input / audio connection for external sound sources and an integrated Bluetooth module with which music can be streamed wirelessly and hands-free calling can be made. Suitable for streaming Spotify and Deezer, among others.

Suitable Audi models with MMI 2G High / Basic system:

• Audi A4 (8K) 2008-2009
• Audi A5 (8T) 2007-2009
• Audi A6 (4F) 2004-2010
• Audi A8 (8E) 2002-2009
• Audi Q7 (4L) 2005-2009

NB:

If the MMI 2G Basic(Low) firmware version of Audi A6 or Q7 is lower than 0410, the MMI firmware must be updated.
Audi A4 (8K) and A5 have the minimum necessary version ex works.

If the MMI 2G High firmware version of Audi A6, Q7 and A8 is lower than 3450, the MMI firmware must be updated.
Audi A4 (8K) and A5 have the minimum necessary version ex works.

Phonebook synchronization is only available on MMI 2G High!

This device supports basic operating functionalities such as (PLAY, PAUSE, NEXT, PREV, FF, REW) via MMI buttons.

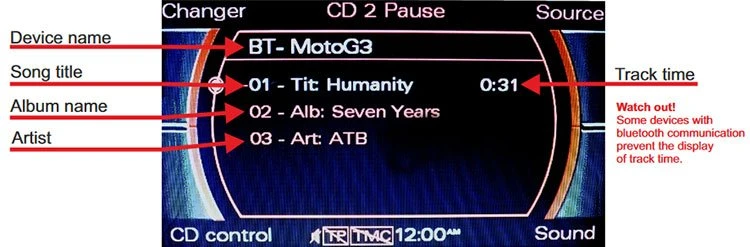

In addition, when playing music via Bluetooth, the title / artist name / album is shown on the display of your MMI system.

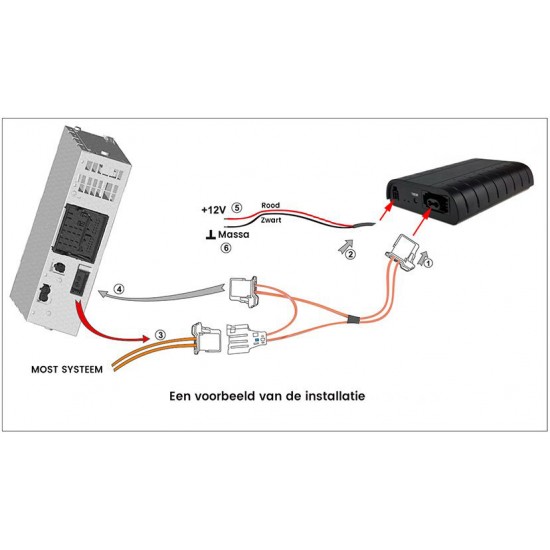

This interface is connected at the back of the CD changer (or replaces the CD changer on MMI 2G Basic systems) to the fiber optic connector.

If there is no CD changer, this box is connected directly to the MMI system. CD changer option does not need to be activated, because it is always active from the factory.

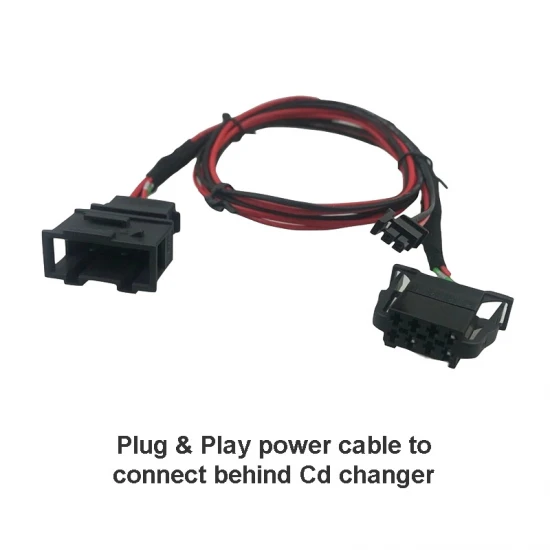

The power supply can be connected to the back of the CD changer using the supplied Plug & Play cable.

If there is no CD changer available, the +12V constant and ground cables from the interface must be connected to the corresponding wires of your car wiring. The necessary cable is also included.

Characteristics

• Integrated Bluetooth module for wireless music streaming (A2DP) in digital quality and control via MMI buttons. Support for title / artist name / album display on the display of the MMI system. Suitable for streaming sounds from played music, videos, navigation, podcasts, etc. on your smartphone through the speakers. Suitable for streaming from Spotify, Deezer and Pandora, among others.

• Hands-free calling (car kit) functionality and control via the MMI buttons (AVRCP)

• USB connection (USB version 1.1 and higher) for playing MP3, WMA and WAV files from a USB stick (FAT16 or FAT32 formatted, max. 32Gb)
• microSD card connection for playing MP3 and WMA files (FAT16 or FAT32 formatted, max. 32Gb)
• AUX connection for an iPod, iPhone, MP3 player, tablet, telephone, GPS, PSP or other external sound source on the MMI fiber optic system for perfect sound reproduction. Please note that operating external devices via the AUX port is not possible. Audio input of the interface is a 3.5mm jack plug. The analog signal is converted into an optical digital audio signal (fiber optic), so that the audio quality is equal to that of the original CD changer
• Memory for the last playback position, which resumes playback when the radio is switched on and off
• Shock and interference resistant
• Easy installation, without damage to the original parts of the car

• Your existing CD changer is retained and remains fully intact (only applies to MMI 2G High). Or can be replaced by this interface. With MMI 2G Basic / Low, the CD changer must be disconnected.

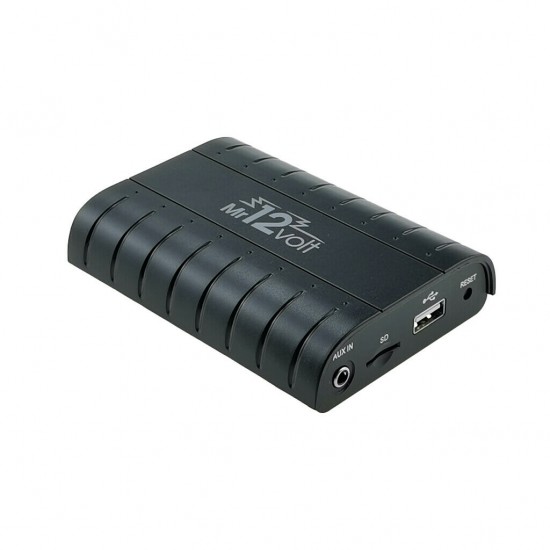

• Interface dimensions (module): 100 x 75 x 25mm


Installation

The installation takes place behind the CD changer, if present, usually located in the glove compartment. Or else directly behind the radio unit (MMI)

1. Turn off the ignition and the MMI system

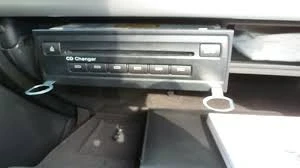

2. Disassemble the CD/DVD changer using the following key set:YT-Key03 . Example
3. Connect the plugs of the supplied fiber optic cluster and the power cables
4. Turn on the ignition and the MMI system
5. Press the SOURCE button on the control panel and select CD to view the available devices. Our device is visible under CD changer options

Installation examples

Installation video Audi A6
Installation video Audi A8
https://www.youtube.com/watch?v=M62P7jgvXQQ
https://www.youtube.com/watch?v=Q45sIvvTv6c

Installation info

Commissioning

1. To start playing external sound sources via the interface, press a CD / TV button on the control panel in the first step. Then press the button that activates the SOURCE function.

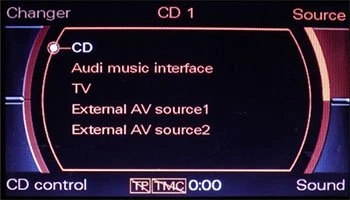

2. Select CD from the displayed list of available devices.



After CD is selected, the button that activates CD changer must be pressed (top left).

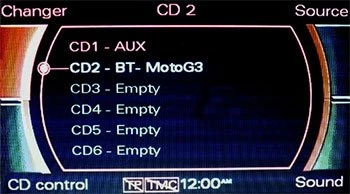

Note: CD changer submenu allows you to switch between the AUX, USB, microSD and Bluetooth input of this interface and between the disks of the CD changer magazine (missing, only with MMI 2G High).



This interface remembers the last selected sound source and starts playing it after switching on the MMI system.

To pair a new device with the Bluetooth module of the interface, the Bluetooth option of the interface must be enabled.

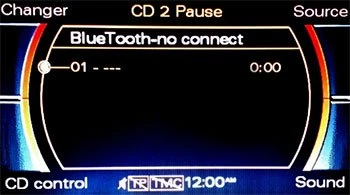

The following screen will be displayed if no Bluetooth device is yet connected to the interface:



After switching on the Bluetooth module on the interface, a smartphone must be used to search for new Bluetooth devices.
Once this Bluetooth interface is discovered you can pair it.
After your phone has been successfully paired with the interface's Bluetooth module, you can immediately start playing music.

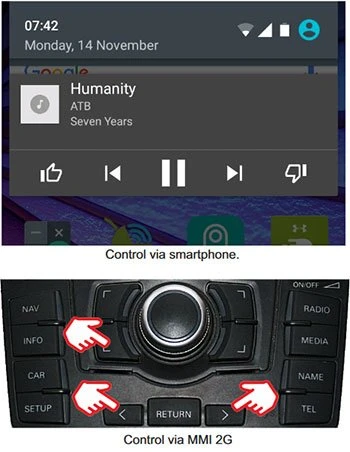

The interface can be operated via a smartphone (or another connected Bluetooth device) itself or via the MMI control panel.



The interface will automatically attempt to reconnect to the last paired device. This function is active after starting the MMI system.

If the connection is not set up, this function is only active when Bluetooth is selected from CD changer option as the current audio source.

The interface attempts to connect to the last paired device at 30 second intervals. During this period the Bluetooth module is also visible for connection to a new device.

Comments:

If a Bluetooth car kit is present in the vehicle, the 4th switch on the DIP switch of the interface must be switched to the "ON" position. You can then continue to make calls with the existing Bluetooth car kit. Streaming music is possible via this interface.
If no Bluetooth car kit is present, all four switches of the DIP switch must be set to "OFF".

Phone book does not work in combination with MMI Basic, only with MMI 2G High infotainment systems.

Info about DIP switch settings

User manual in English

Support

WhatsApp in English: +85260668491.

Scope of delivery

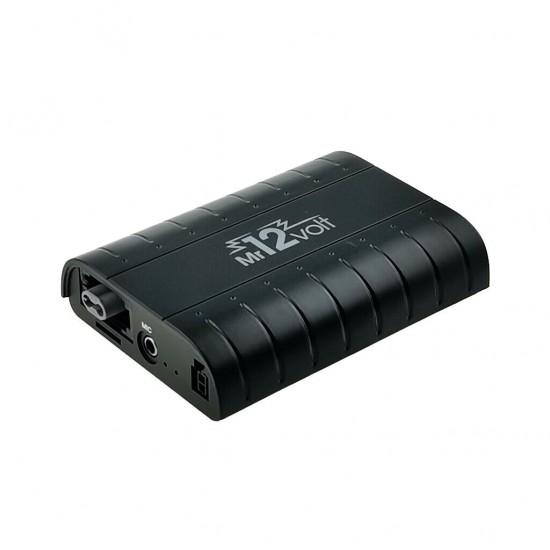

• Audi MMI 2G MOST Interface
• Fiber optic ring cable

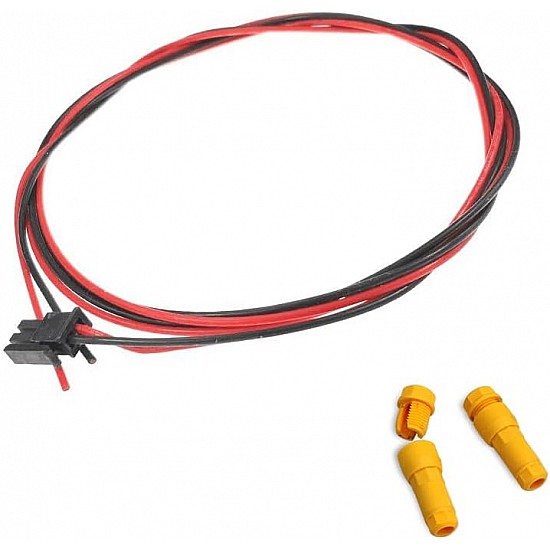

• Wiring for connecting the power supply. Plug & Play version and with loose wires of your choice

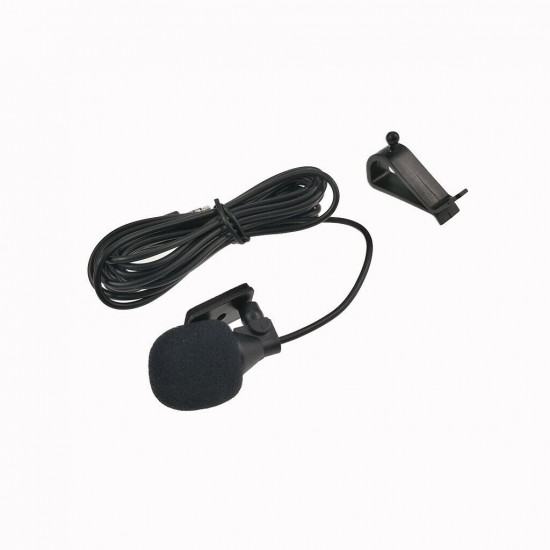

• Microphone, cable length 2 m

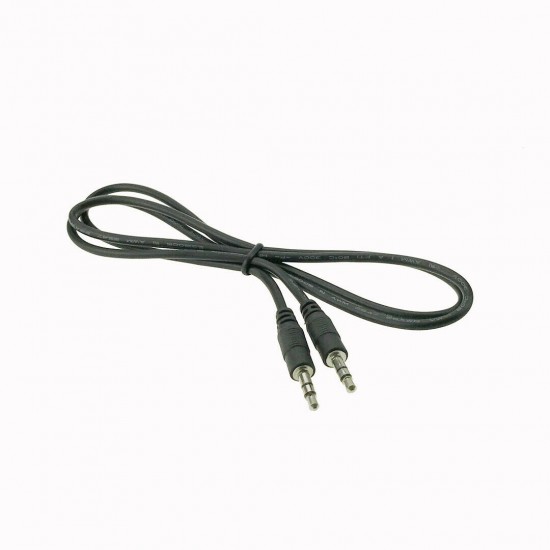

• AUX cable 1.5 m

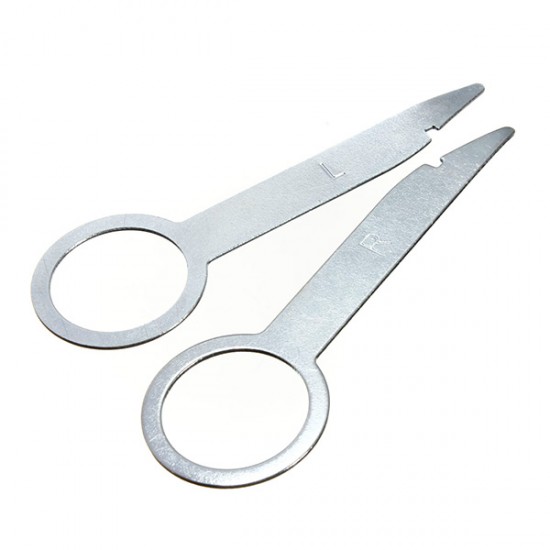

• CD changer removal keys

• Manual in English
• 2 year warranty
• Invoice

MMI versions:

Which version MMI do I have? -> Check
