Audi CarPlay / Android Auto / Mirrorlink Interface for Audi A6 A8 Q7 with MMI 2G High (MOST)

This Apple CarPlay, Google Android Auto, Mirrorlink interface / adapter is suitable for Audi MMI 2G High infotainment systems of Audi A6, A8 and Q7.

Suitable Audi models with MMI 2G High system:

• Audi A6 (4F) 2004-2009
• Audi A8 (8E) 2002-2009
• Audi Q7 (4L) 2004-2009

NB:

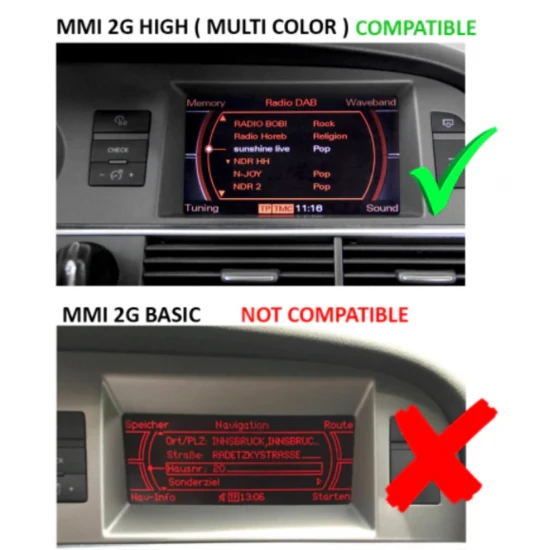

MMI 2G Low / Basic infotainment systems (red / black screen) are not suitable.

Characteristics

• The most advanced Apple CarPlay, Google Android Auto (wired and wireless) interface on the market
• Miracast / Mirrorlink wireless (image from the smartphone is projected on the car screen)
• Integrated Bluetooth module for wireless music streaming (A2DP) in digital quality and control via MMI buttons. Support for title / artist name / album display on the display of the MMI system. Suitable for streaming sounds from played music, videos, navigation, podcasts, etc. on your smartphone through the speakers. Suitable for playing Spotify, Deezer, Pandora, iTunes, YouTube...
• Hands-free calling (car kit) functionality and control via the MMI buttons (AVRCP)
• USB connection for playing audio and video files
• Forward camera and reversing camera inputs (cameras are not included)
• Support for Apple Lossless music streaming
• Siri activate via control button "Voice command"
• The only one of its kind where audio runs via fiber optic (MOST) and not via AUX as with competitors. This guarantees crystal clear sound
• DSP chip with 15 bar equalizer
• 2x integrated antennas (WiFi and Bluetooth)
• Everything remains original, operation via MMI buttons
• 100% Plug and Play, no wire cutting or soldering

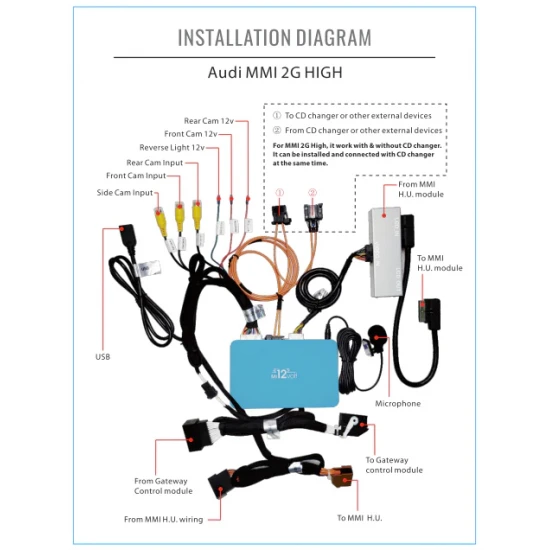

Installation examples

Audi A6 MMI 2G High

Audi A8 MMI 2G High

Audi Q7 MMI 2G High

Demo operation of Carplay on Audi A6 with MMI 2G High

Technical specifications

• Operating temperature: -20 to +80 degrees
• DAC resolution: 18Bit
• MP3 bit rate: 8 - 384 kbit
• Voltage: 10 - 14.6V DC
• Power consumption: 450mA (700mA when charging a smartphone)
• S/N ratio: 95dB
• Total Harmonic Distortion: 0.1%
• Frequency range: 20Hz - 20KHz

MMI versions:

Which version MMI do I have? -> Check
