Apple CarPlay / Android Auto / Mirrorlink multimedia, camera MOST Interface for BMW NBT (ID4) (8.8"/10.25")

This Apple CarPlay / Google Android Auto / Mirrorlink video interface / multimedia adapter is suitable for BMW NBT, NBT ID4 (8.8"/10.25") infotainment systems. Perfect audio reproduction via MOST bus and DSP with 15 equalizers.

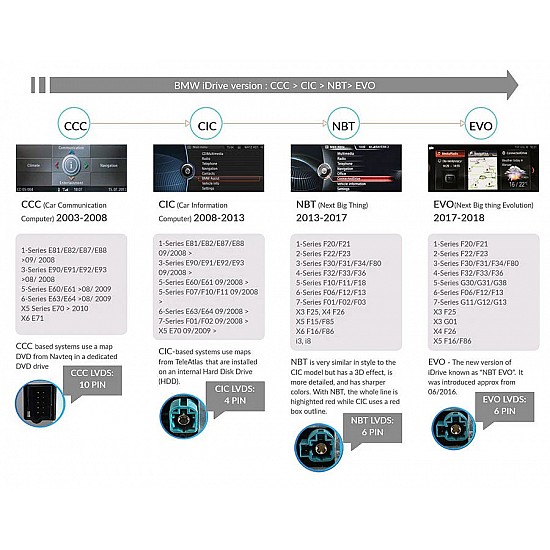

Suitable BMW models with NBT, NBT ID4 (8.8"/10.25")

• 1 series - F20/F21
• 2 Series-F22/F23/F87
• 3 Series-F30/F31/F34/F80
• 4 Series-F32/F33/F36/F82
• 5 Series-F10/F11/F07
• 6 Series-F12/F13/F06
• 7 Series-F01/F02
• X3-F25
• X4-F26
• X5-F15/F85
• X6-F16/F86

Characteristics

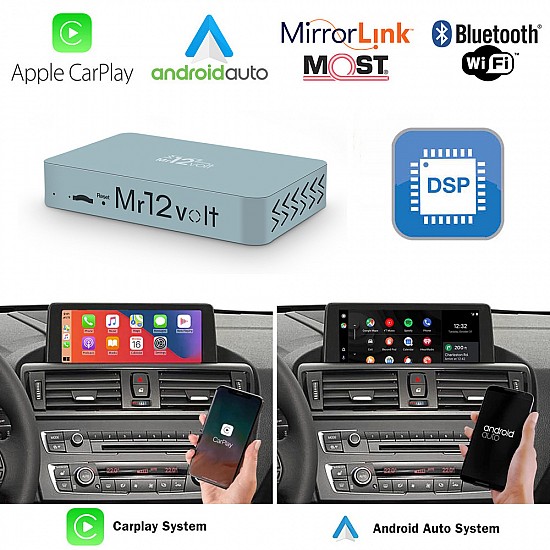

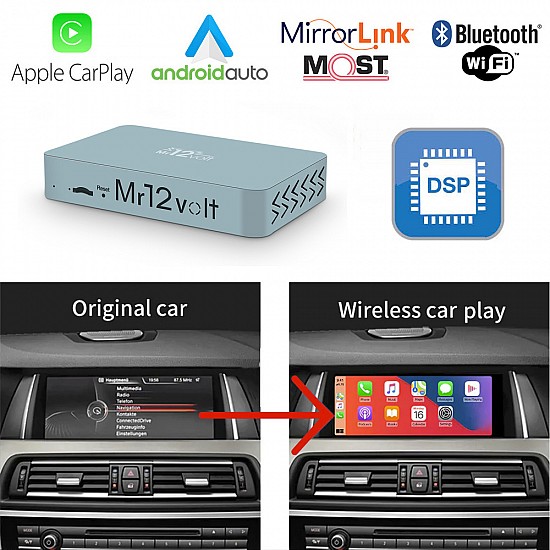

• The most advanced Apple CarPlay, Google Android Auto (wired and wireless) interface on the market
• Miracast / Mirrorlink wireless (image from the smartphone is projected on the car screen)
• Integrated Bluetooth module for wireless music streaming (A2DP) in digital quality and control via iDrive buttons. Support for title/artist name/album display on the display. Suitable for streaming sounds from played music, videos, navigation, podcasts, etc. on your smartphone through the speakers. Suitable for playing Spotify, Deezer, Pandora, iTunes, YouTube...
• Hands-free calling (car kit) functionality and control via the iDrive buttons (AVRCP)
• USB connection for playing audio and video files
• Forward camera and reversing camera inputs (cameras are not included)
• Support for Apple Lossless music streaming
• Siri activate via control button "Voice command"
• The only one of its kind where audio runs via fiber optic (MOST) and not via AUX as with competitors. This guarantees crystal clear sound
• DSP chip with 15 bar equalizer
• 2x integrated antennas (WiFi and Bluetooth)
• Everything remains original, operated via iDrive buttons
• 100% Plug and Play, no wire cutting or soldering

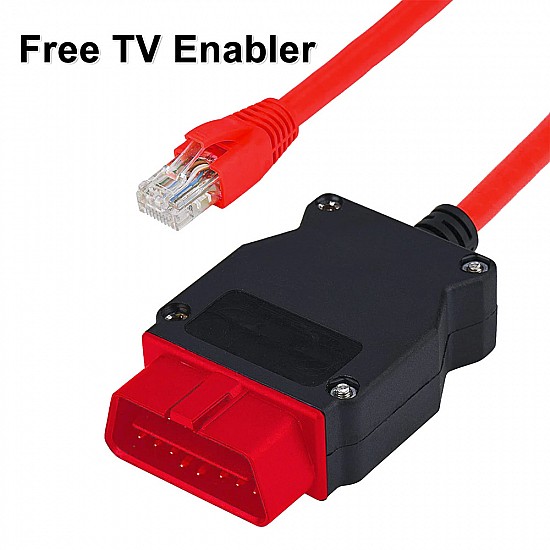

NBT's TV function must be encoded using the supplied OBD cable and downloadable software: BMWAI.zip

Instruction for encoding TV option in NBT

https://youtu.be/YXdXGDcKIvc

Supported formats (High performance video and audio codec)

• Decoding H.264 (Baseline and Main High Profile, Level 1-4.2) 30fps @1080p
• Decoding VC-1 (Simple Main Profile, low, medium and high levels. Advanced Profile, levels 0-3) 30fps @1080p
• Decoding MPEG1/2/4 (Simple Profile, levels 0-6. Main Profile, low, medium and high levels. ASP, levels 0-5) 30fps @1080p
• Decoding Real Video 8/9/10 30fps @1080p
• Decoding VP6/7/8 (VP6.0/1/2, VP7 version 0-3, VP8 version 2(WebM)) 30fps @1080p
• Decoding DivX (DivX3/4/5/6) 30fps @1080p
• Decoding H.263 (Profile 0, levels 10-70.) 30fps @720x576
• JPEG codec (Baseline interleaved) 8176x8176
• Support *.mkv, *.mp4, *.avi, *.wmv, *.rmvb, *.rm, *.mpg, *.mpeg, *.ts, *.dat, *.asf, *.flv, * .vob, and so on file format
• Multi Format Audio CODEC (MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR, and so on)

Technical specifications

• Operating temperature: -20 to +80 degrees
• DAC resolution: 18Bit
• MP3 bit rate: 8 - 384 kbit
• Voltage: 10 - 14.6V DC
• Power consumption: 450mA (700mA when charging a smartphone)
• S/N ratio: 95dB
• Total Harmonic Distortion: 0.1%
• Frequency range: 20Hz - 20KHz

Demo video

https://youtu.be/dYIQWcIT_6w
